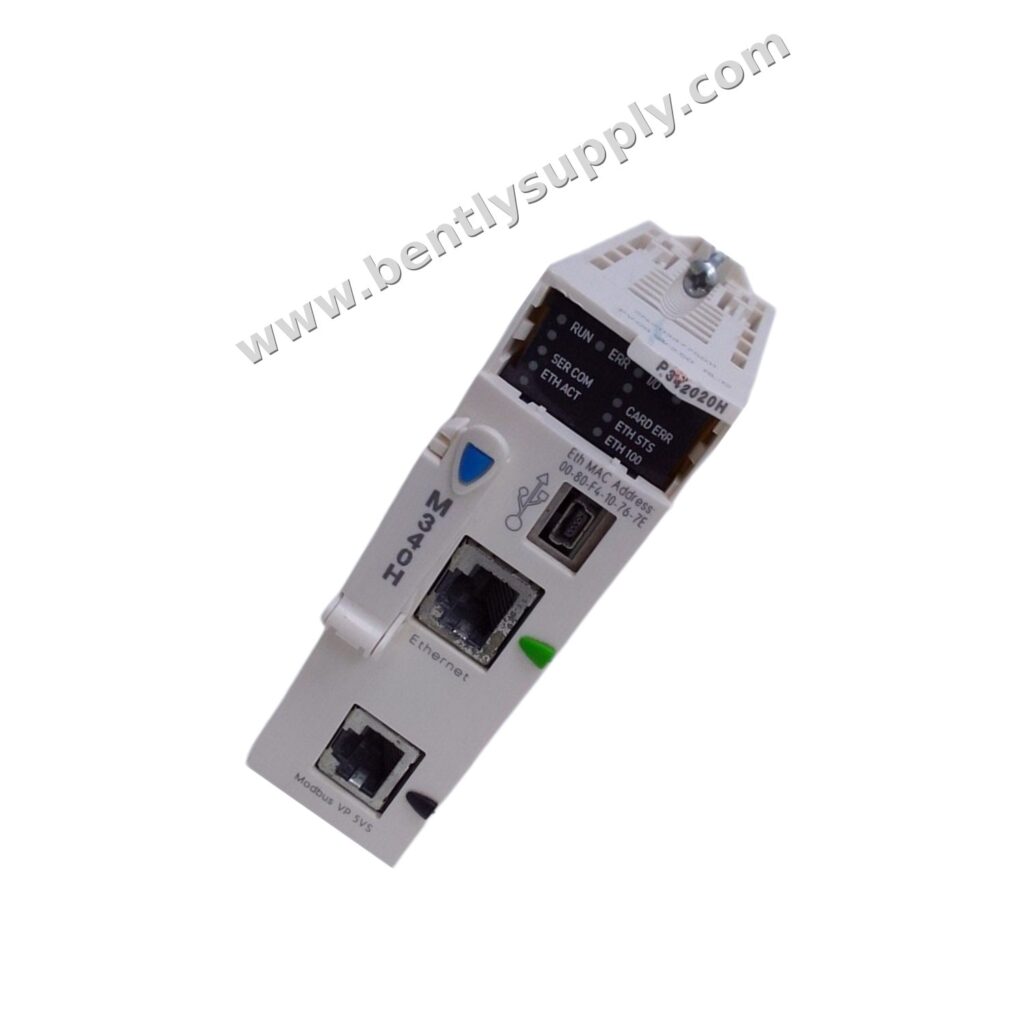

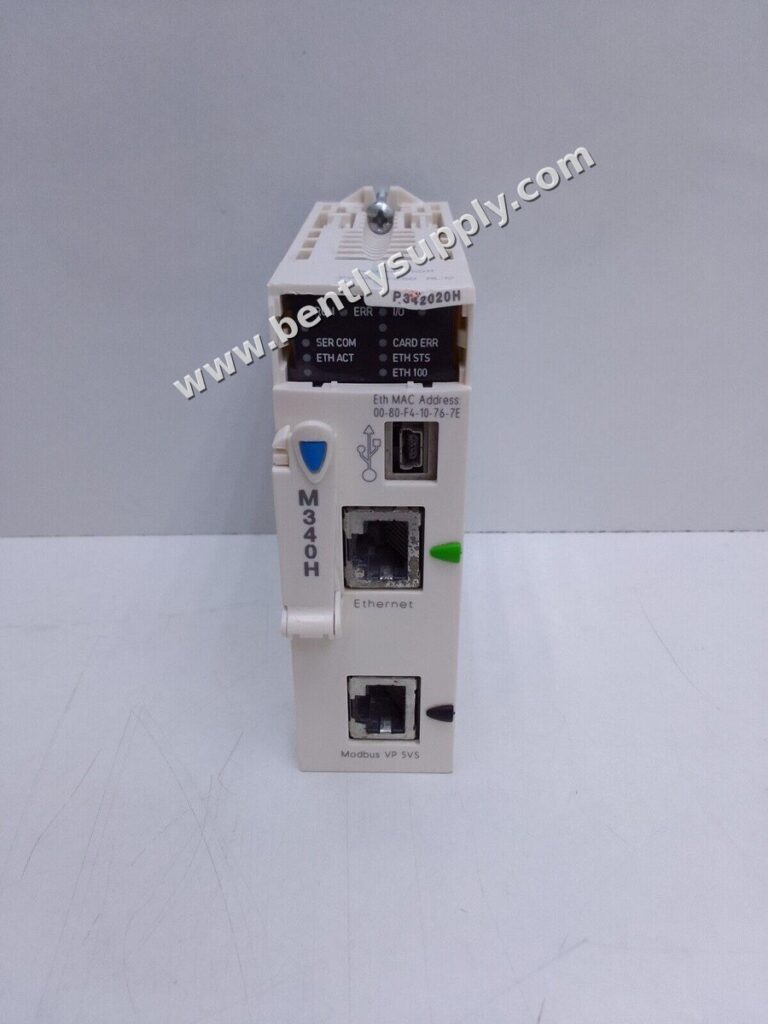

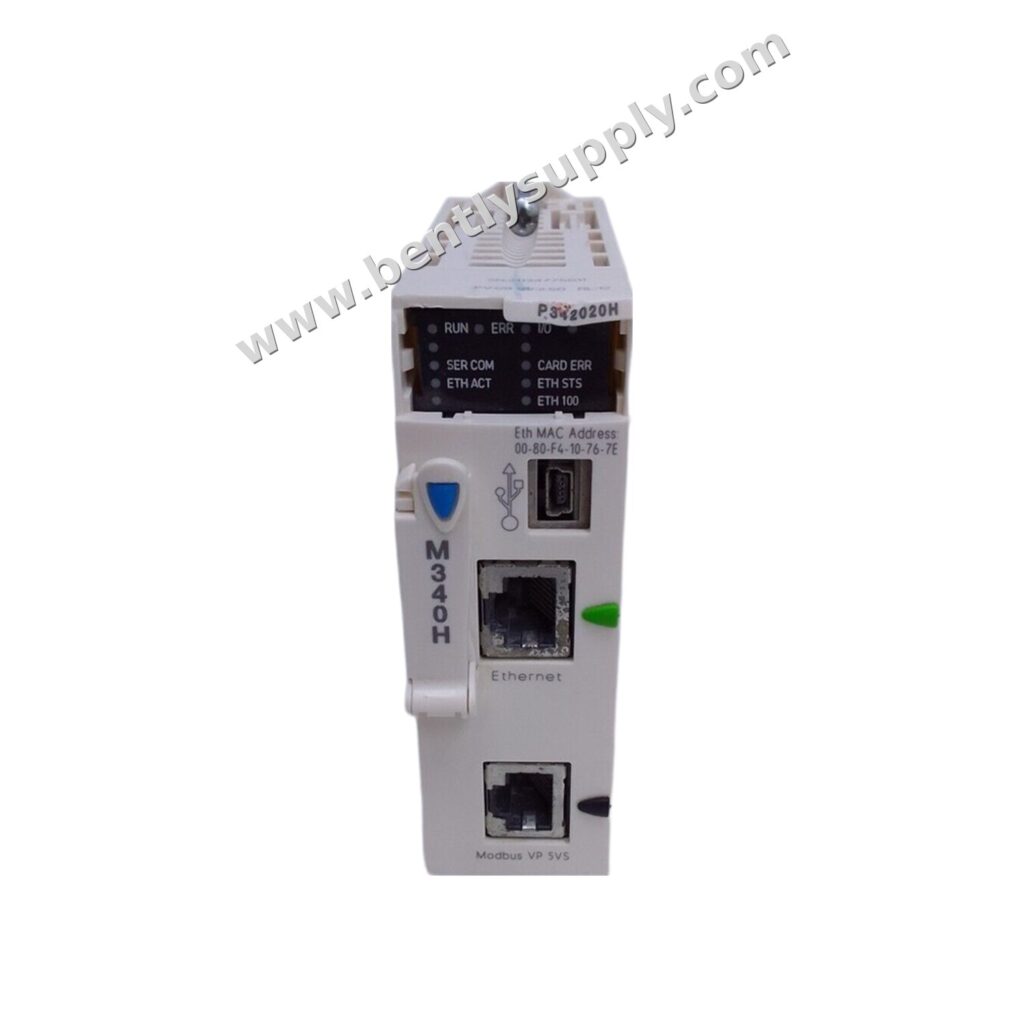

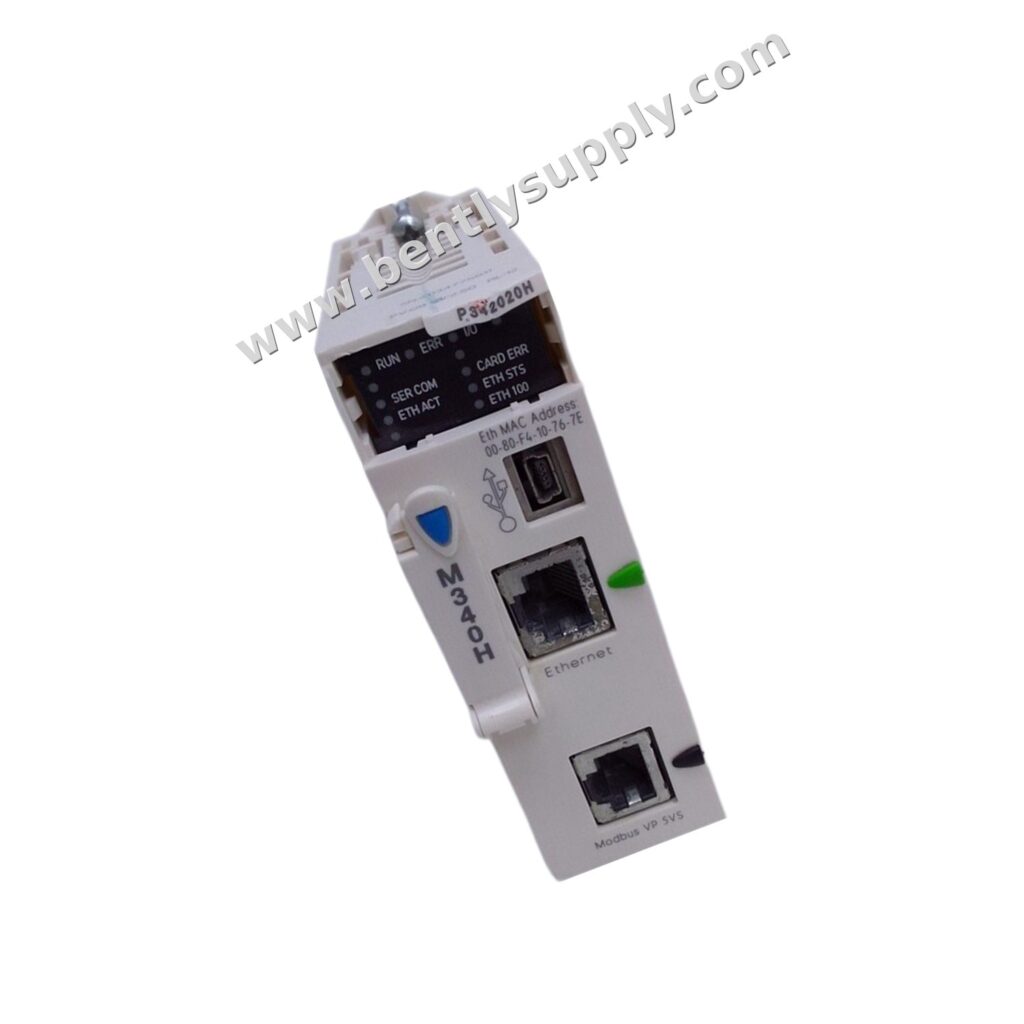

Schneider BMXP342020H Modicon M340 Processor Module

Product Introduction

The Schneider BMXP342020H is a processor module from the Modicon M340 automation platform, engineered for severe environments. It combines high-density discrete and analog I/O processing with built-in Ethernet, Modbus, serial, and USB connectivity, making it a versatile control solution for demanding industrial applications.

Technical Parameters

• Discrete I/O capacity: 1024 I/O (multi-rack), 704 I/O (single-rack)
• Analog I/O capacity: 256 I/O (multi-rack), 66 I/O (single-rack)
• Application-specific channels: 36
• Number of racks: 4
• Number of slots: 11
• Integrated connections: RS232C/RS485 serial link RJ45, USB 12 Mbit/s, Ethernet TCP/IP RJ45 10/100 Mbit/s
• Communication protocols: Modbus RTU/ASCII, Modbus TCP, Ethernet TCP/IP, SNMP, CANopen
• Communication module capacity: 2 Ethernet communication modules, 4 AS-Interface modules
• Ethernet port: 10BASE-T/100BASE-TX
• Monitoring: Diagnostic counters Modbus, Event counters Modbus

Parameter Analysis

The BMXP342020H supports up to 1024 discrete I/O in a multi-rack configuration and 256 analog I/O, allowing flexible system scaling. With 4 racks and 11 slots, it can accommodate a wide range of I/O modules. The processor also handles 36 application-specific channels and provides programmable loop control. Its communication capabilities include Modbus and Ethernet TCP/IP, with support for up to 2 Ethernet communication modules and 4 AS-Interface modules, ensuring seamless integration into existing architectures.

Application Scenarios

Thanks to its robust design and severe-environment rating, the BMXP342020H is well suited for industrial applications such as turbine control, compressor monitoring, pump stations, and rotating machinery. Its real-time processing and multi-protocol communication enable reliable operation in critical infrastructure and process automation.

Installation Guide

Install the BMXP342020H processor module into a Modicon M340 rack with up to 4 racks and 11 slots. Ensure the module is securely seated in the designated slot. Connect the serial link, Ethernet, and USB interfaces as required by your application. Follow the installation instructions in the official Schneider manual for proper wiring and configuration.

Compatibility

The BMXP342020H is compatible with the Modicon M340 automation platform, including CANopen and Transparent Ready concepts. It supports Modbus RTU/ASCII and Modbus TCP messaging, and can manage up to 2 Ethernet communication modules and 4 AS-Interface modules. It also works with standard Modbus diagnostic and event counters.

Maintenance Advice

Regularly check diagnostic and event counters via Modbus to monitor system health. Keep the module firmware up to date and inspect all communication cables for damage. Ensure the operating environment stays within the severe-environment specifications to maximize the lifespan of the BMXP342020H.

Procurement Advice

When purchasing the BMXP342020H, verify that it is a genuine Schneider Electric module. Review the technical manual and confirm the model number and specifications. Consider stocking spare units for critical applications to minimize downtime.

FAQ

What is the discrete I/O capacity of the BMXP342020H?

The BMXP342020H supports 1024 discrete I/O in a multi-rack configuration and 704 discrete I/O in a single-rack configuration.

What communication protocols are supported?

It supports Modbus RTU/ASCII, Modbus TCP, Ethernet TCP/IP, SNMP, and CANopen.

Can the BMXP342020H be used in severe environments?

Yes, the BMXP342020H is specifically designed for severe environments.

How many racks can be configured?

Up to 4 racks with 11 slots can be configured.

What is the Ethernet speed?

The Ethernet port supports 10BASE-T/100BASE-TX, providing 10/100 Mbit/s speed.
