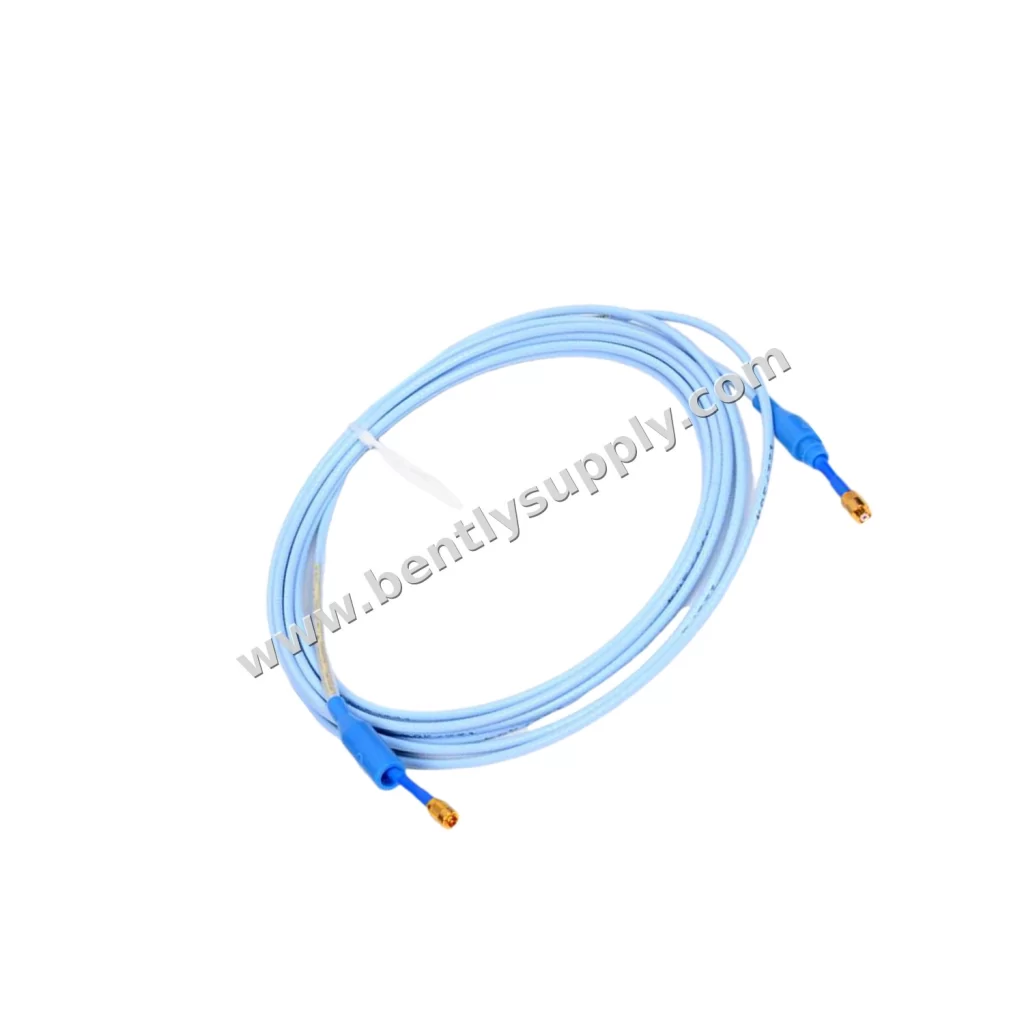

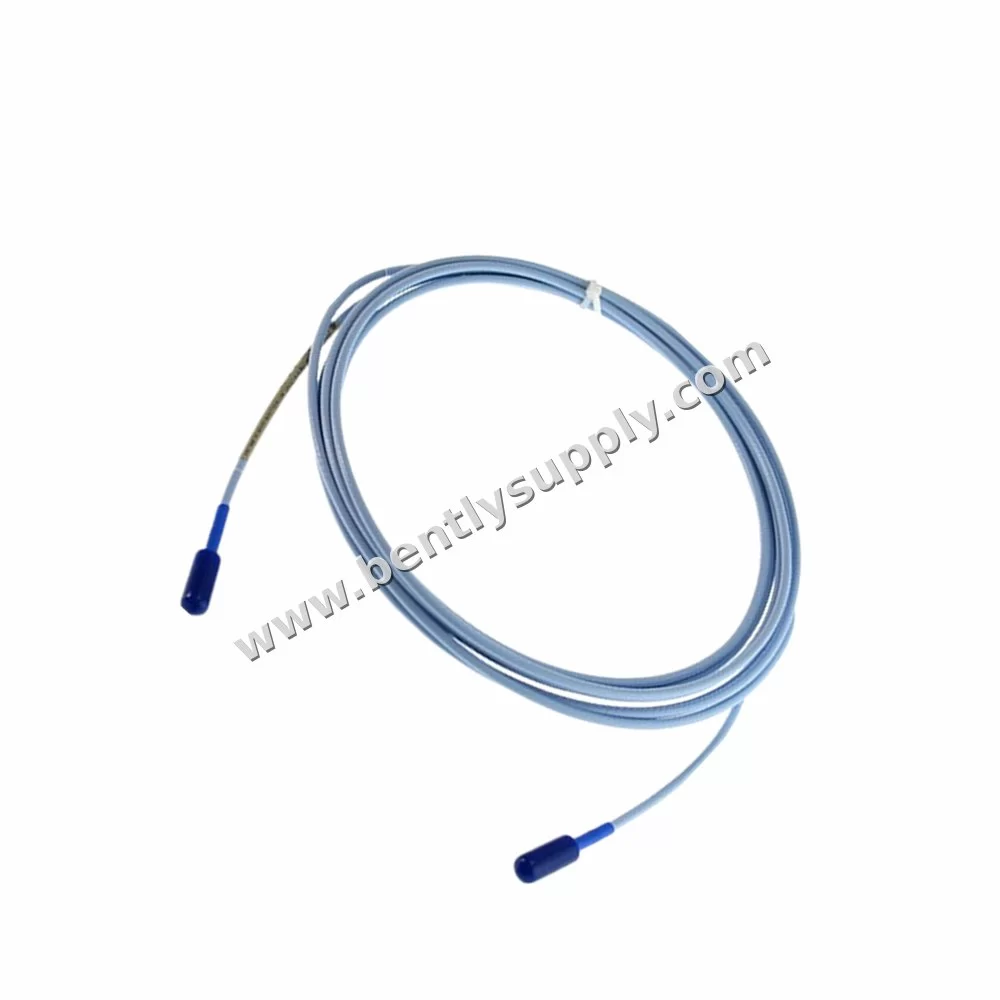

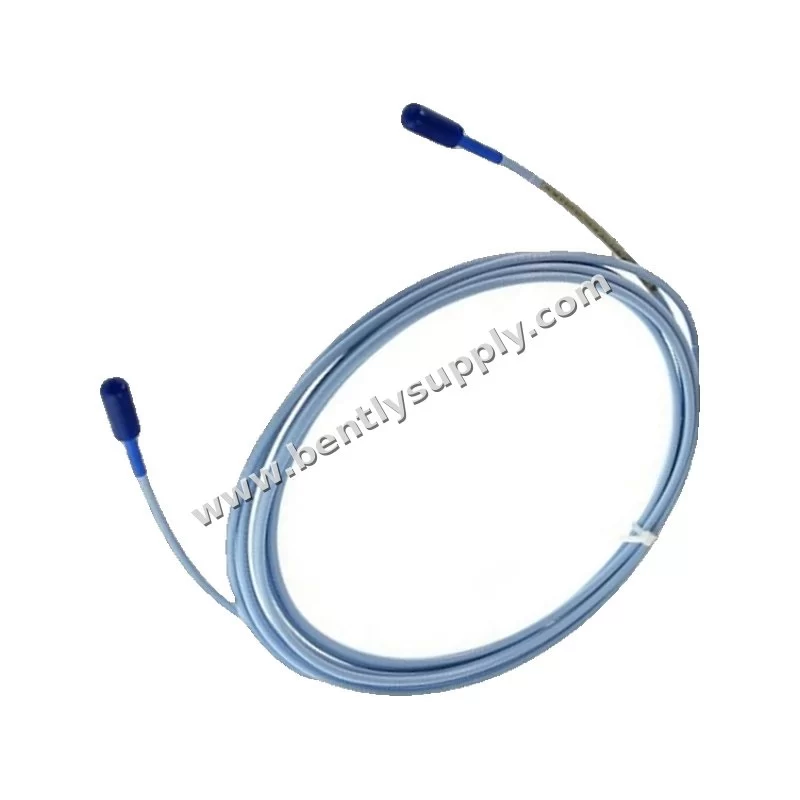

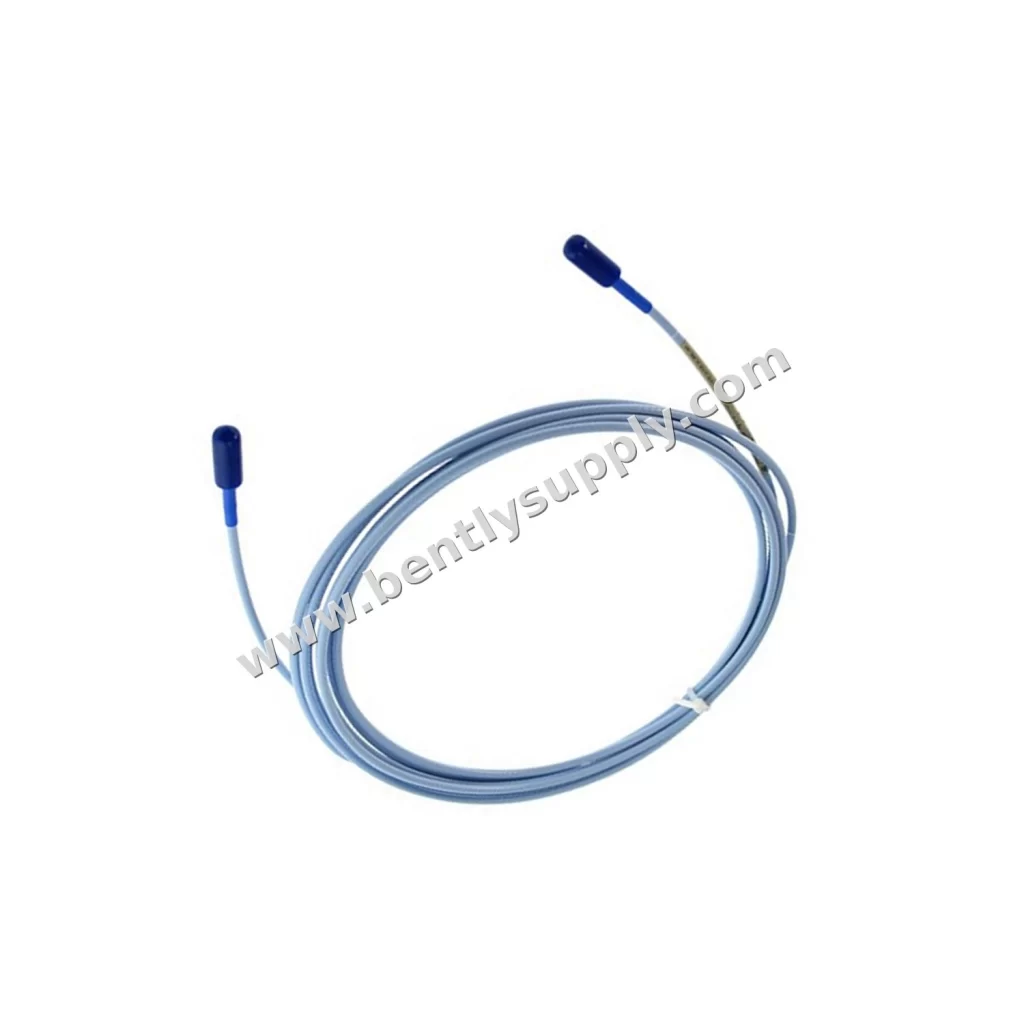

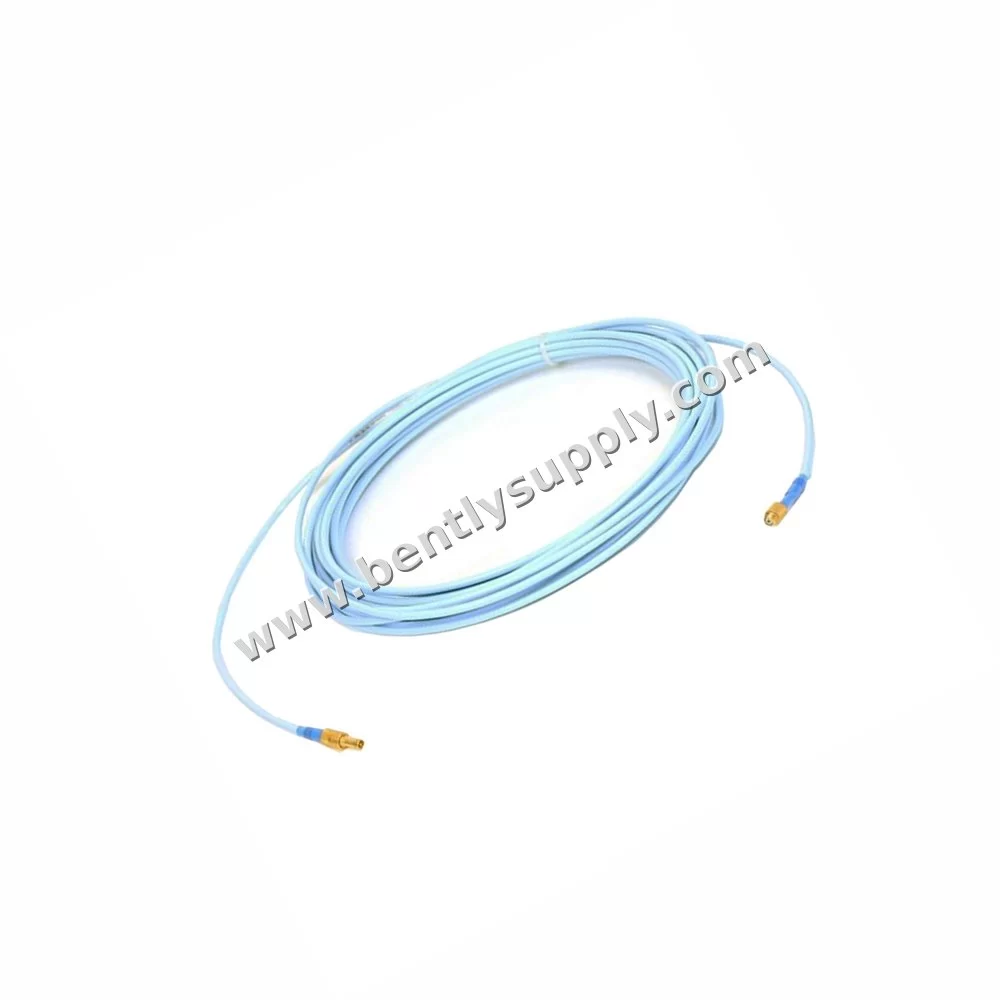

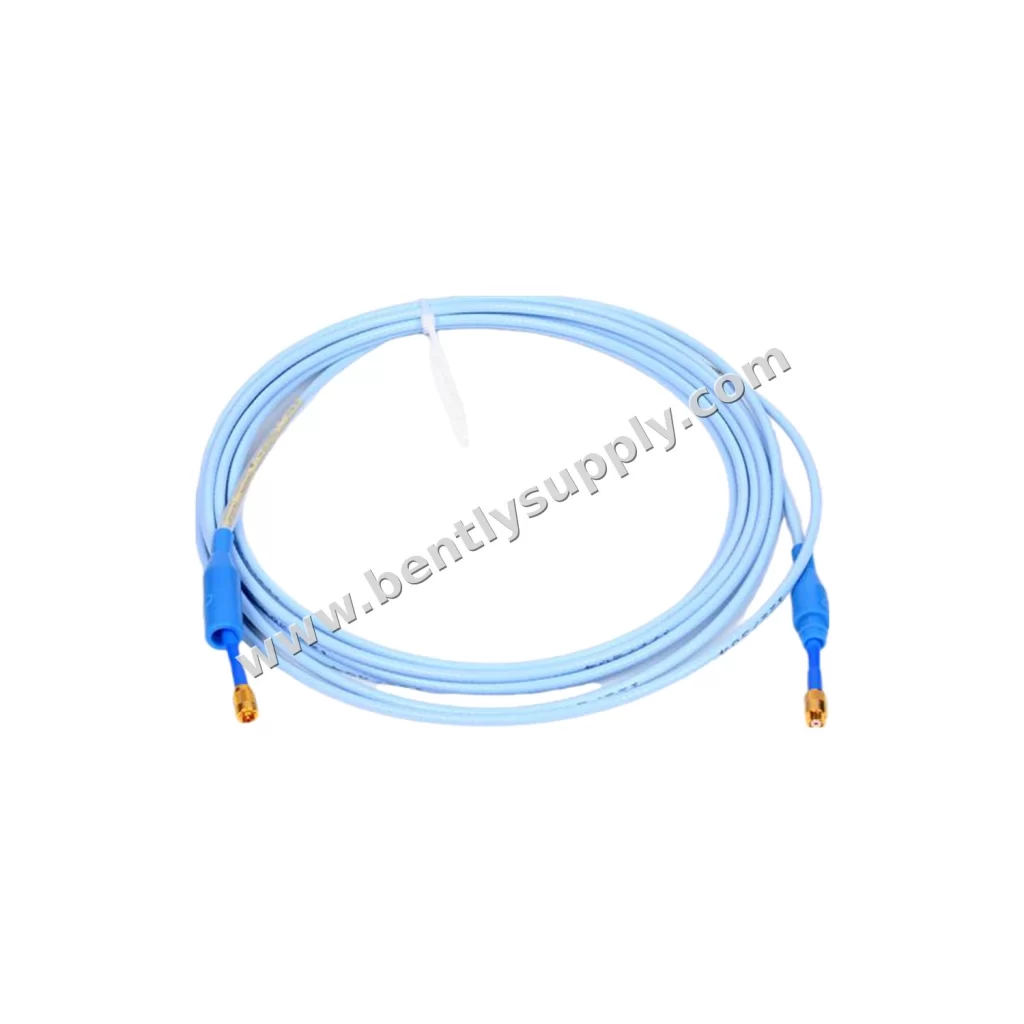

Bently Nevada 330190-080-00-05 Extension Cable

Product Introduction

TenBN offers the genuine Bently Nevada 330190-080-00-05, an extension cable built for the demands of continuous machinery protection. The component is held in inventory for fast shipment to plants operating turbines, compressors, pumps, and other rotating assets.

Technical Parameters

• Model: 330190-080-00-05
• Product Type: Extension Cable
• Product Series: 330190
• Cable length Option: 080 –8.0 meters (26.2 feet)
• Cable Option: 00 –Standard cable
• Agency approval Option: 05- CSA, ATEX, IECEx Approvals
• Length of Extension Cable (m): 8.0 meters (26.2 feet)

Parameter Analysis

Each option block in the 330190-080-00-05 part number defines one element of the hardware configuration, from mechanical dimensions to connector style and approval suffix. The cable length Option specifies 080 –8.0 meters (26.2 feet). The cable Option specifies 00 –Standard cable. The agency approval Option specifies 05- CSA, ATEX, IECEx Approvals. The unit is rated for operation from -52°C to +177°C (-62°F to +350°F). Compliance documentation covers 05- CSA, ATEX, IECEx Approvals.

Because cable, probe, and Proximitor are calibrated as a system, keeping the same part numbers across the loop preserves scale factor accuracy and simplifies replacement during outages.

Application Scenarios

Used wherever the proximity measurement loop must bridge the distance between probe and Proximitor, this cable suits junction-box and electronics-room installations on turbomachinery trains.

Installation Guide

Plan the run so that probe integral lead plus extension cable matches the intended total system length, route the cable away from pinch points and hot surfaces, and seat the connectors fully. Verify the loop after installation by confirming the probe gap voltage at the monitor.

Compatibility

This component belongs to the 3300 XL 8 mm proximity system and is engineered to work with the associated probes, extension cables, Proximitors, and monitoring hardware of the same system. Bently Nevada components sharing the same part number are fully interchangeable, so a stocked spare can be fitted without re-engineering the measurement loop. TenBN can supply the complete chain under consistent part numbers.

Maintenance Advice

Inspect the cable jacket and connectors during outages for cuts, moisture ingress, or loosened couplings, and confirm the run remains clear of abrasive surfaces. Keep the unit within its -52°C to +177°C (-62°F to +350°F) operating envelope in service and storage.

Procurement Advice

Confirm the complete part number against your machine’s bill of materials before ordering, since each option digit changes the mechanical or electrical fit. TenBN stocks genuine Bently Nevada components and provides the official service documentation for this model. For inventory, pricing, and lead time on the 330190-080-00-05, contact [email protected].

Frequently Asked Questions

What is the operating temperature range?

The unit is rated from -52°C to +177°C (-62°F to +350°F), covering the temperature extremes typical of turbomachinery installations.

What approvals or certifications does it carry?

Compliance documentation covers 05- CSA, ATEX, IECEx Approvals. Confirm the approval suffix on your part number before ordering for hazardous-area use.

Can this spare be interchanged with existing components?

Bently Nevada components sharing the same part number are fully interchangeable, so this spare can replace an existing unit without recalibrating the loop when the complete part number matches.

How do I confirm the right part number?

Check every option digit against the machine bill of materials, then contact [email protected] with the full string; the TenBN team will confirm fit, stock, and documentation.
