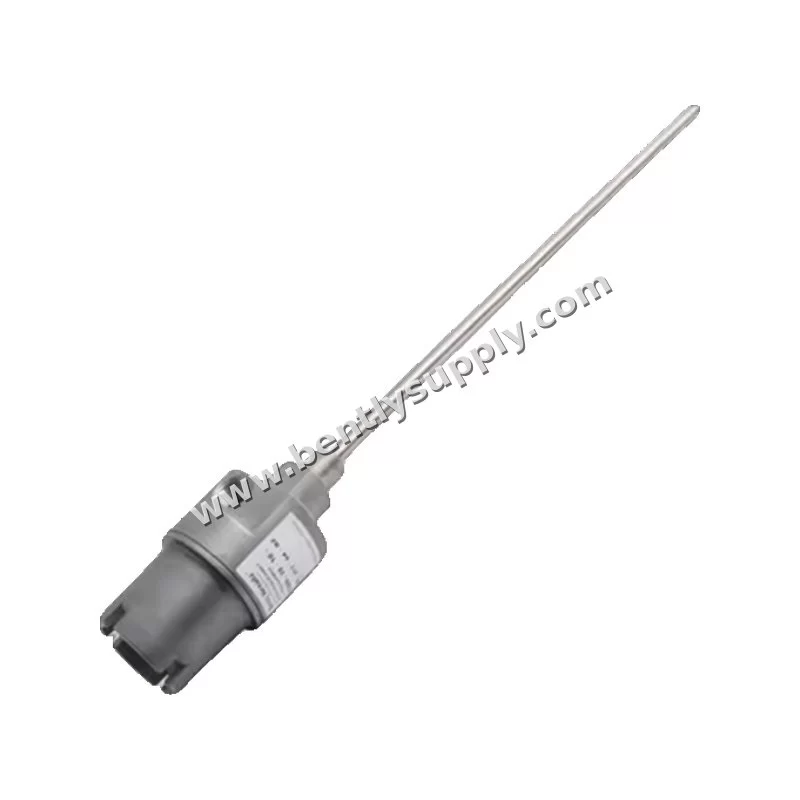

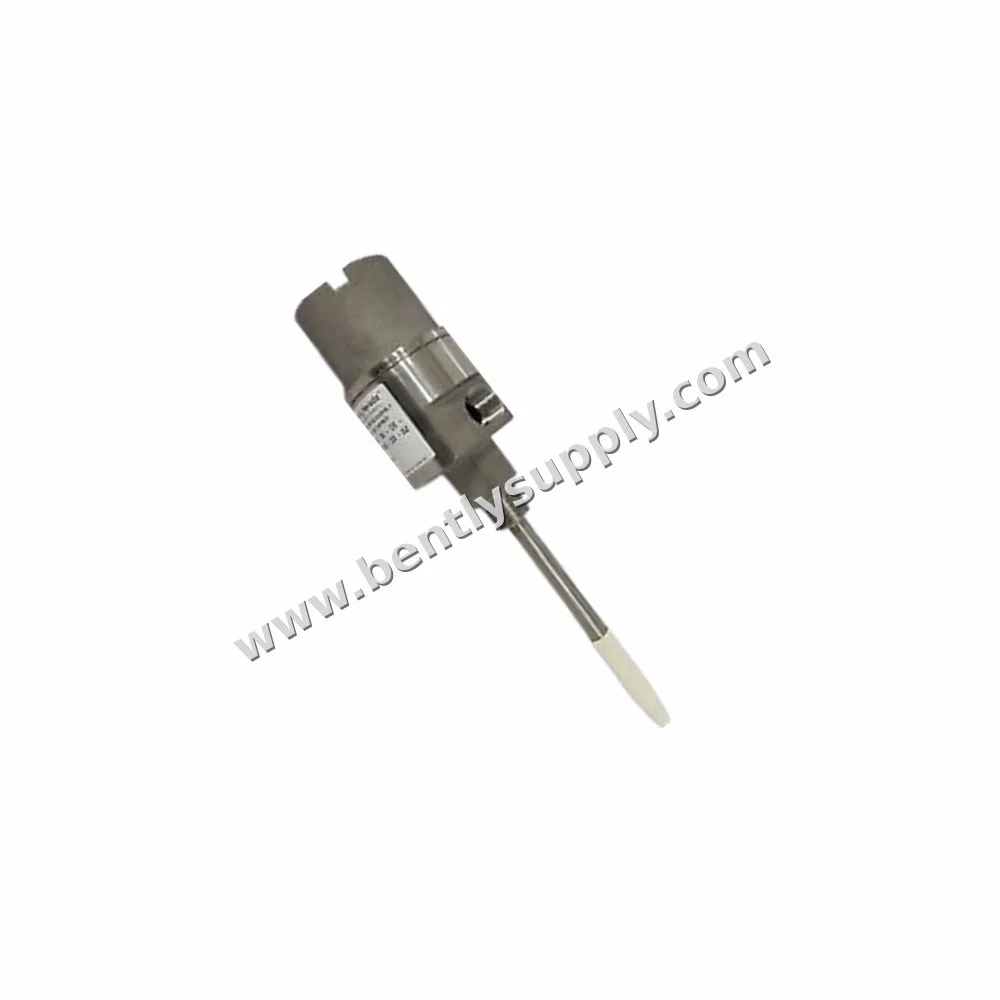

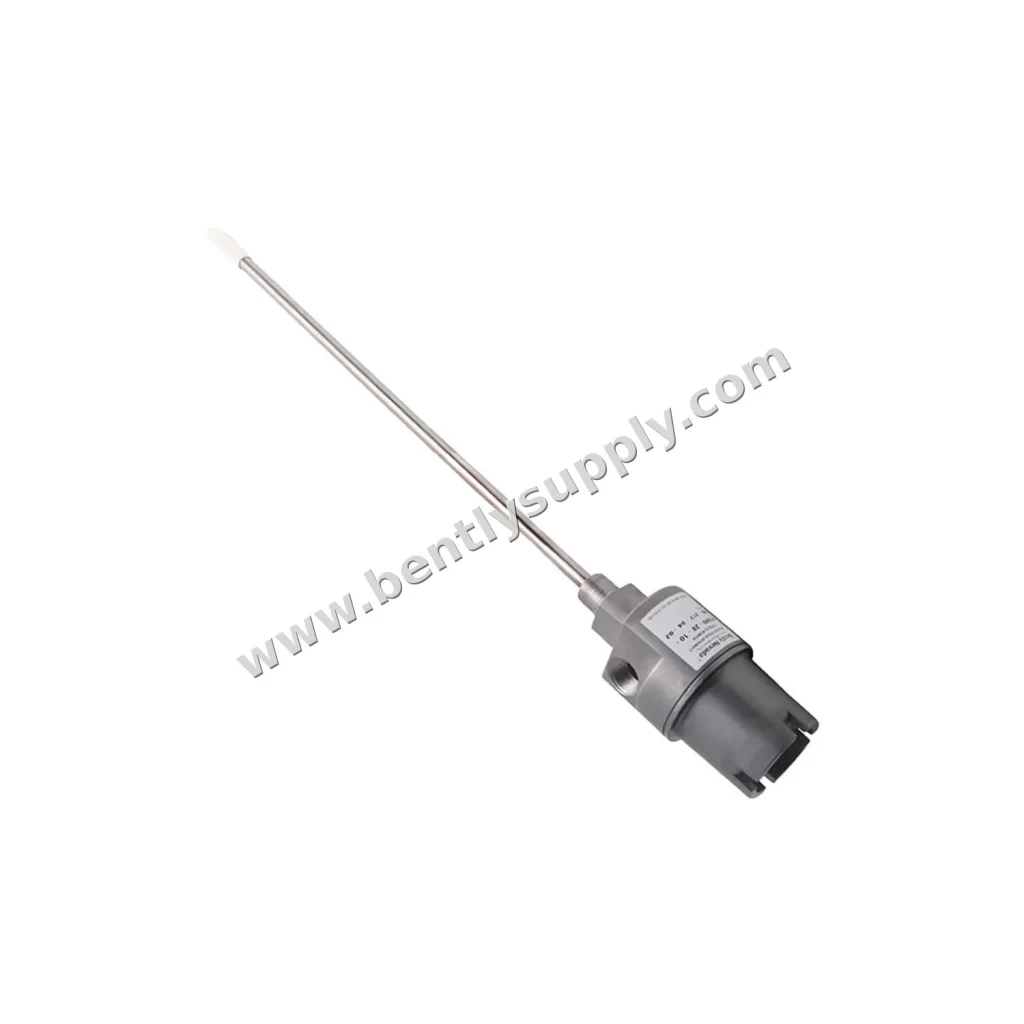

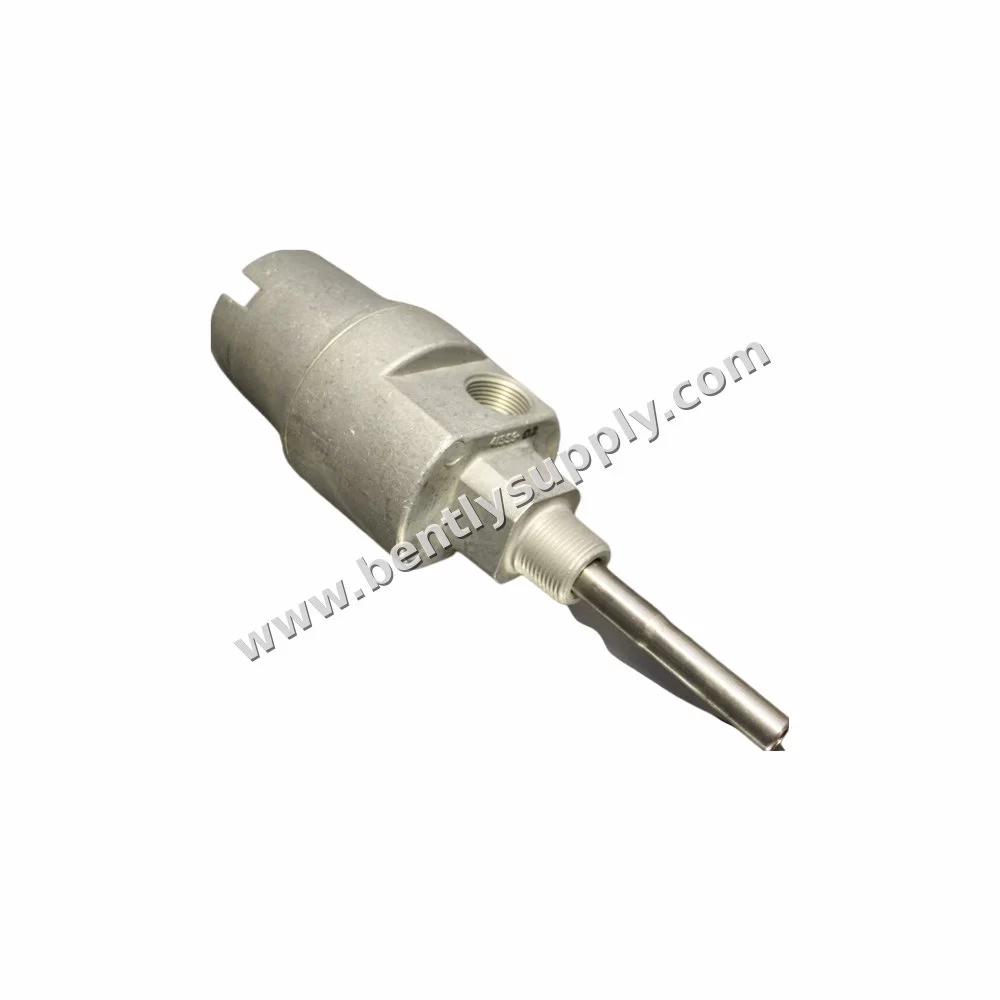

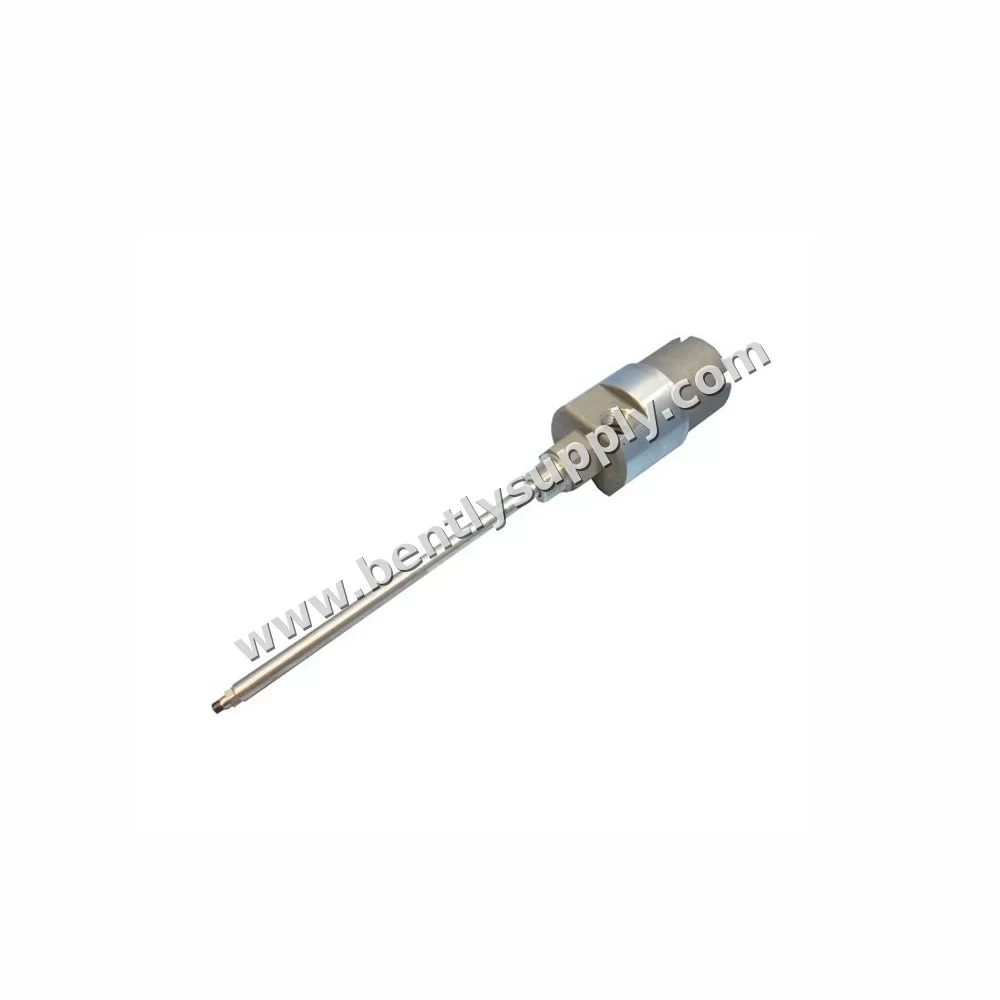

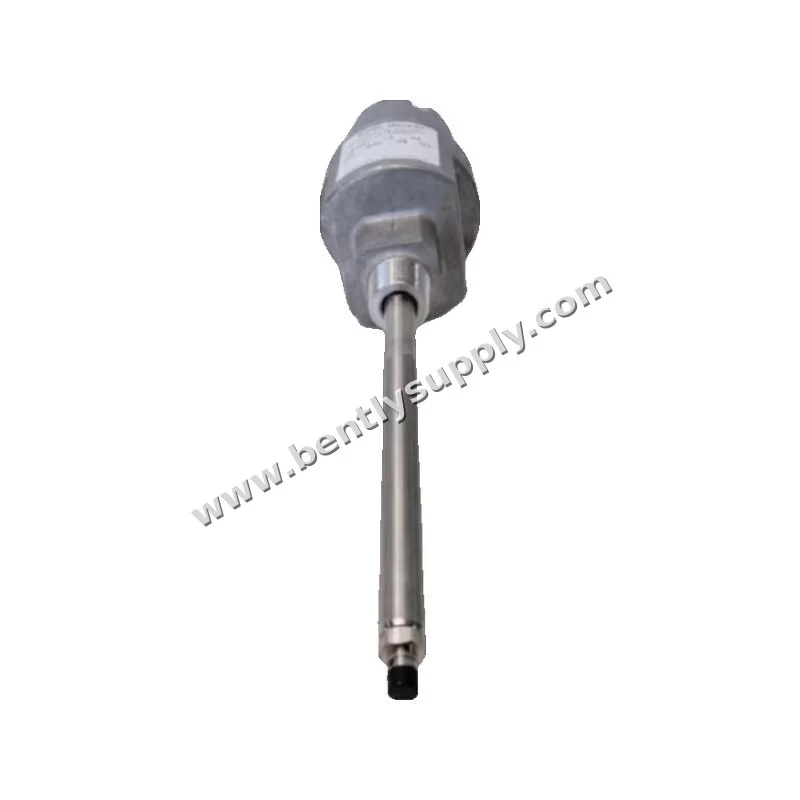

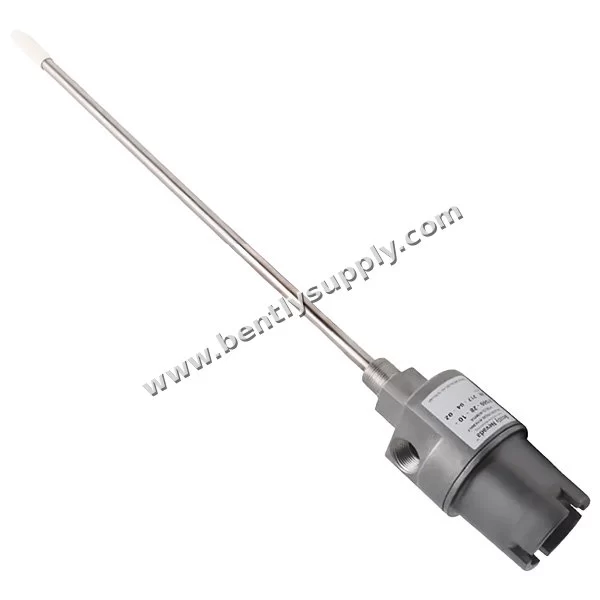

Bently Nevada 24701-28-05-00-070-04-01 Proximity Probe Housing Assemblies

Product Introduction

The Bently Nevada 24701-28-05-00-070-04-01 is a probe housing assembly (Proximity Probe Housing Assemblies), engineered for continuous protection of rotating machinery. TenBN supplies this genuine Bently Nevada component with full documentation and ready stock for plants running condition monitoring programs on critical equipment.

Technical Parameters

• Model: 24701-28-05-00-070-04-01
• Product Type: Proximity Probe Housing Assemblies
• Product Series: 21000 / 24701
• Product Number: 24701-28-05-00-070-04-01
• Probe Option: with Connector: 28 – 3300 XL 8mm, with approval option
• Probe cable length Option: 05 =20 in (0.5 m)
• Standoff Adapter: No standoff adapter = 00
• Probe Penetration: 070 – 0.7 in
• Fittings Option: 04 =One 3/4-14 NPT plug only
• Mounting thread Option: 01 =As cast without threads
• L a probe sleeve of Option: al length
• L an Option: al standoff adapter

Parameter Analysis

The ordering string of the 24701-28-05-00-070-04-01 encodes its physical and electrical configuration, so every digit should be checked against the machine drawing before substitution. The probe Option specifies with Connector: 28 – 3300 XL 8mm, with approval option. The probe cable length Option specifies 05 =20 in (0.5 m). The fittings Option specifies 04 =One 3/4-14 NPT plug only.

The housing assembly seals the probe penetration against wash-down and dust while allowing standard probe maintenance, combining mechanical protection with the electrical performance of the enclosed probe.

Application Scenarios

Installations on rotating machinery that demand sealed probe penetrations rely on this housing to guard against dust, hose-directed water, and mechanical contact while keeping the probe serviceable.

Installation Guide

Confirm every option digit against the machine drawing, mount the housing through its threaded connection, tighten the retaining nut to the documented torque, and keep the sleeve O-rings seated to preserve the environmental seal. Set the probe gap after assembly and verify before start-up.

Compatibility

This component belongs to the 3300 XL 8 mm proximity system and is engineered to work with the associated probes, extension cables, Proximitors, and monitoring hardware of the same system. Bently Nevada components sharing the same part number are fully interchangeable, so a stocked spare can be fitted without re-engineering the measurement loop. TenBN can supply the complete chain under consistent part numbers.

Maintenance Advice

Inspect the housing cover, screws, and O-rings at each maintenance opportunity, and confirm the retaining nut torque has not relaxed in service.

Procurement Advice

This unit is supplied new & original in factory packing with 12 months factory warranty. Confirm the complete part number against your machine’s bill of materials before ordering, since each option digit changes the mechanical or electrical fit. TenBN stocks genuine Bently Nevada components and provides the official service documentation for this model. For inventory, pricing, and lead time on the 24701-28-05-00-070-04-01, contact [email protected].

Frequently Asked Questions

What connector or interface does it use?

It uses one 3/4-14 NPT plug only, matching the standard Bently Nevada measurement chain.

Can this spare be interchanged with existing components?

Bently Nevada components sharing the same part number are fully interchangeable, so this spare can replace an existing unit without recalibrating the loop when the complete part number matches.

How do I confirm the right part number?

Check every option digit against the machine bill of materials, then contact [email protected] with the full string; the TenBN team will confirm fit, stock, and documentation.
