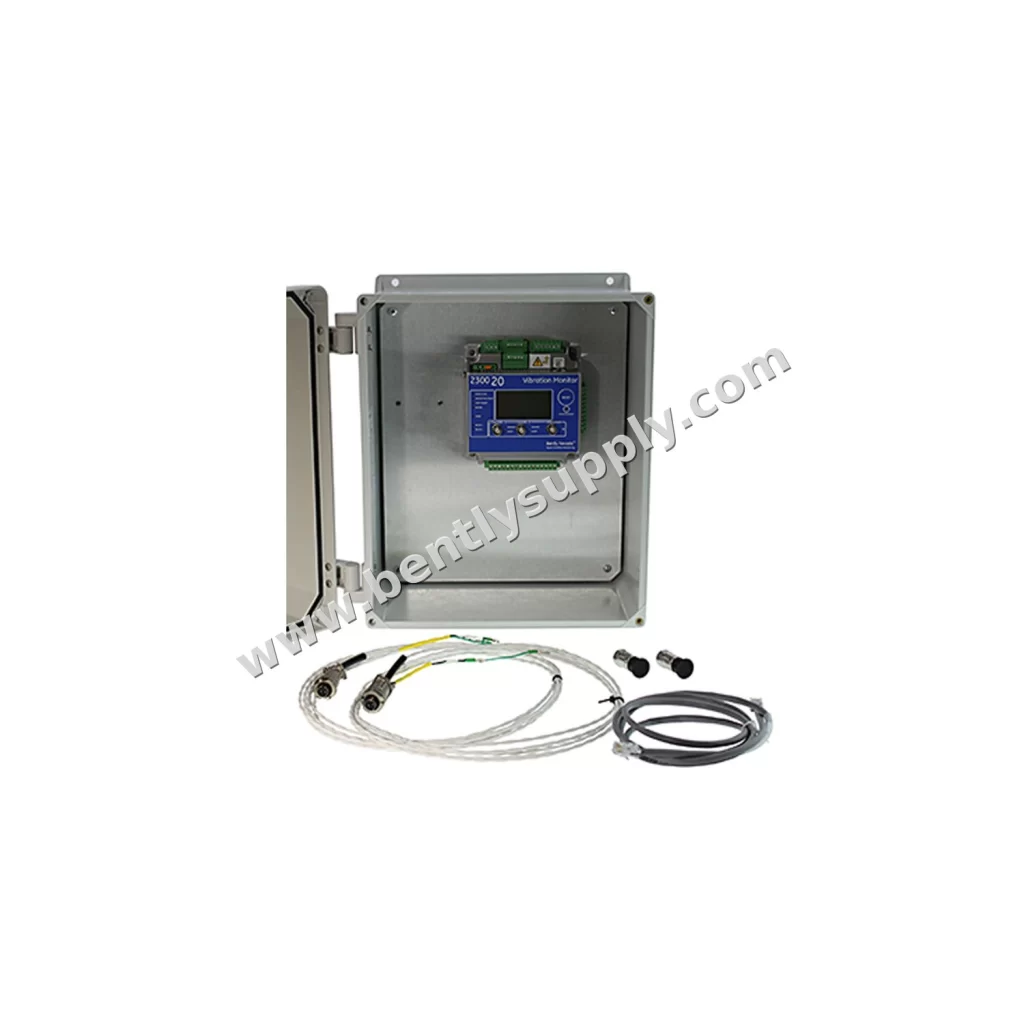

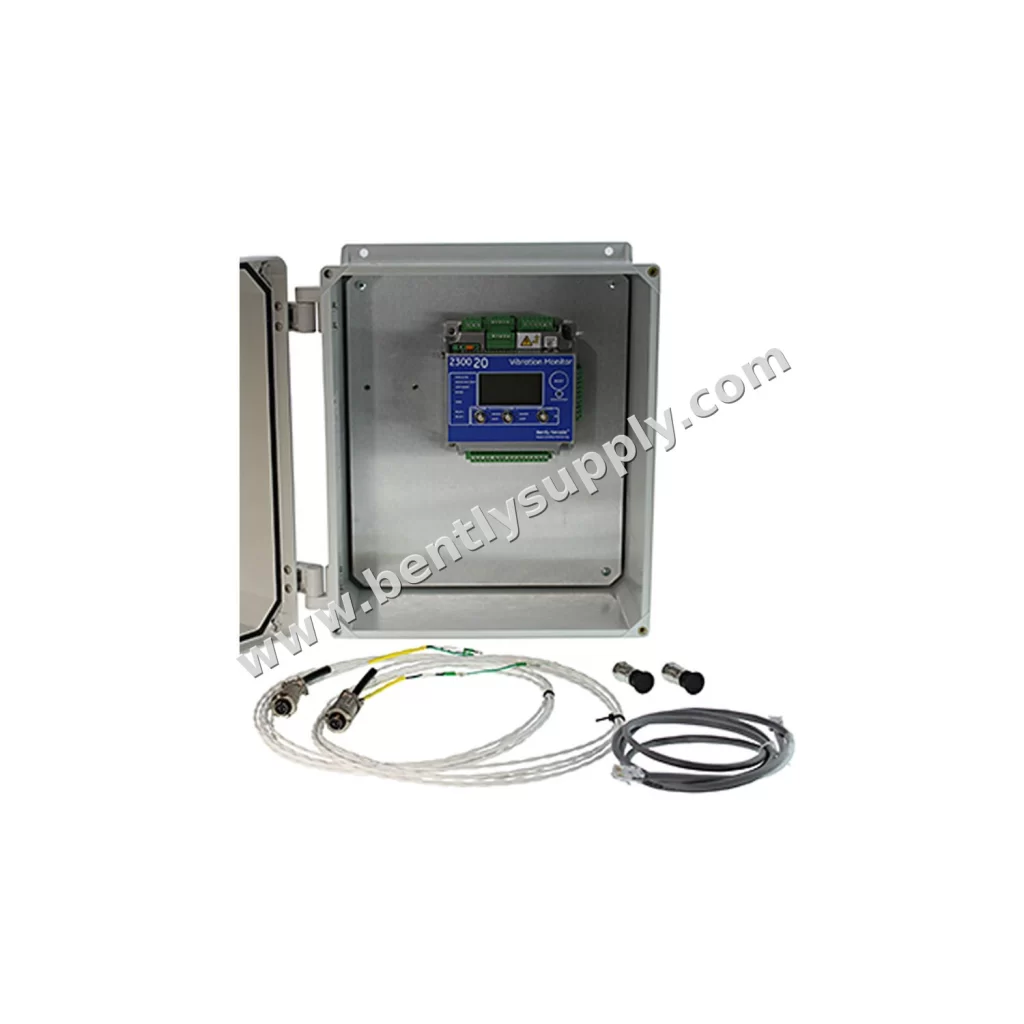

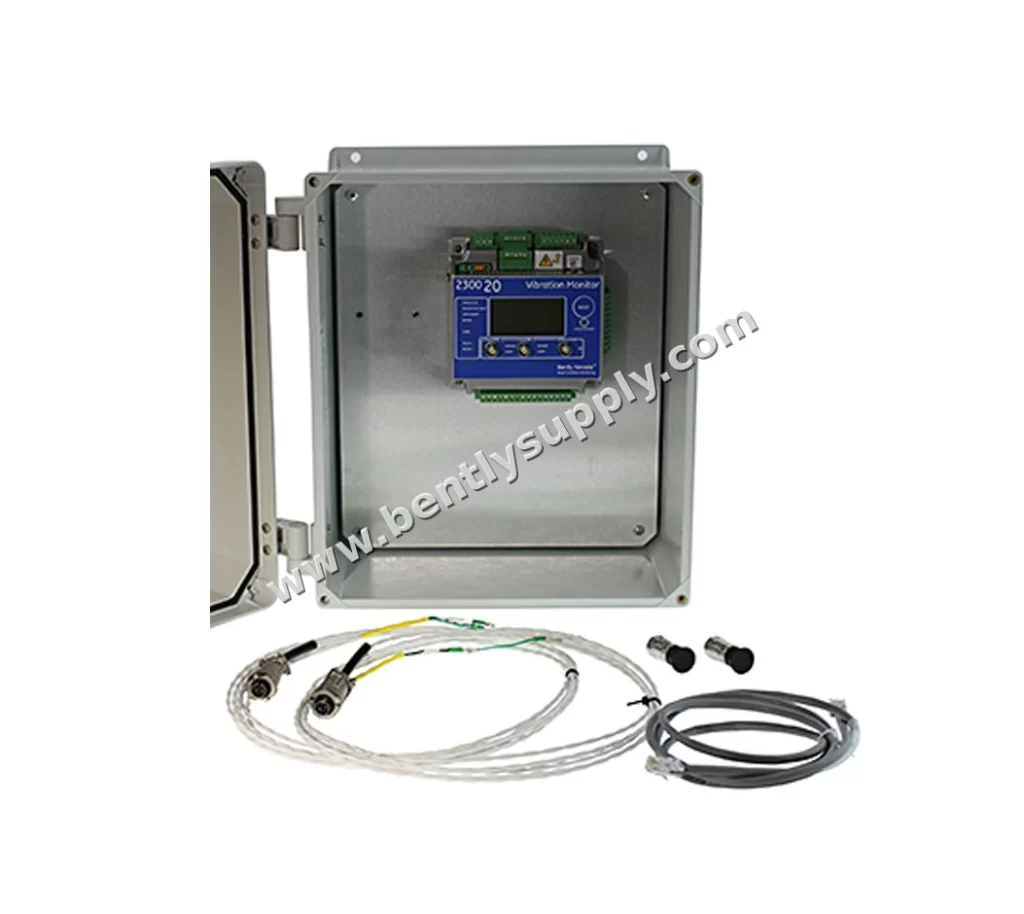

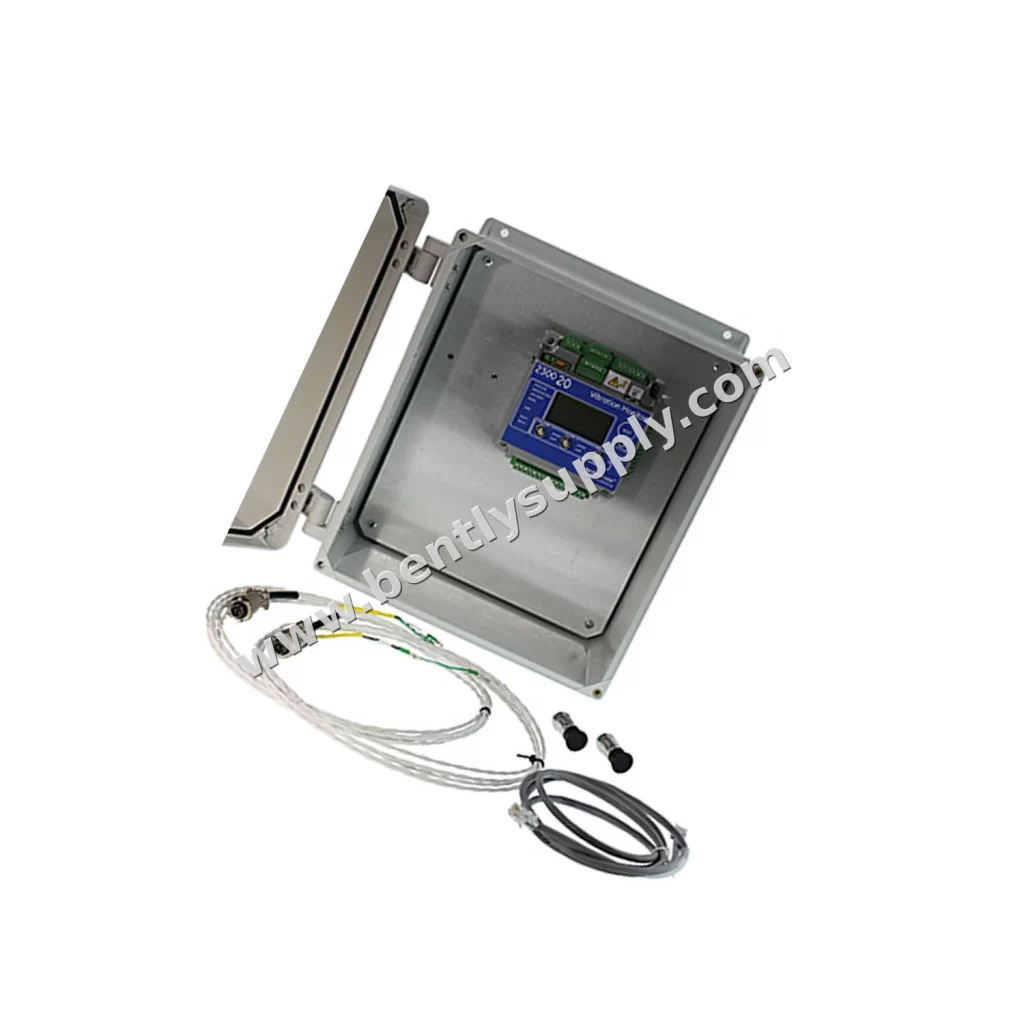

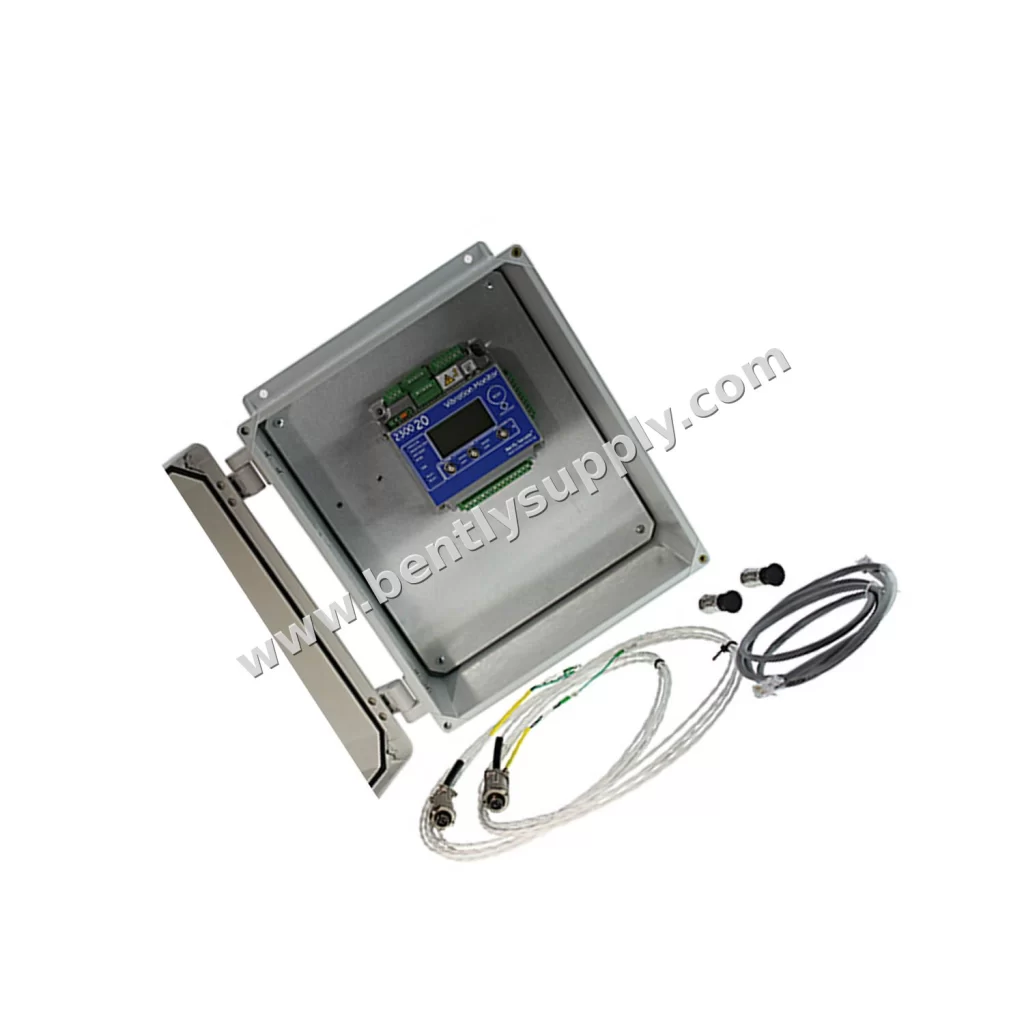

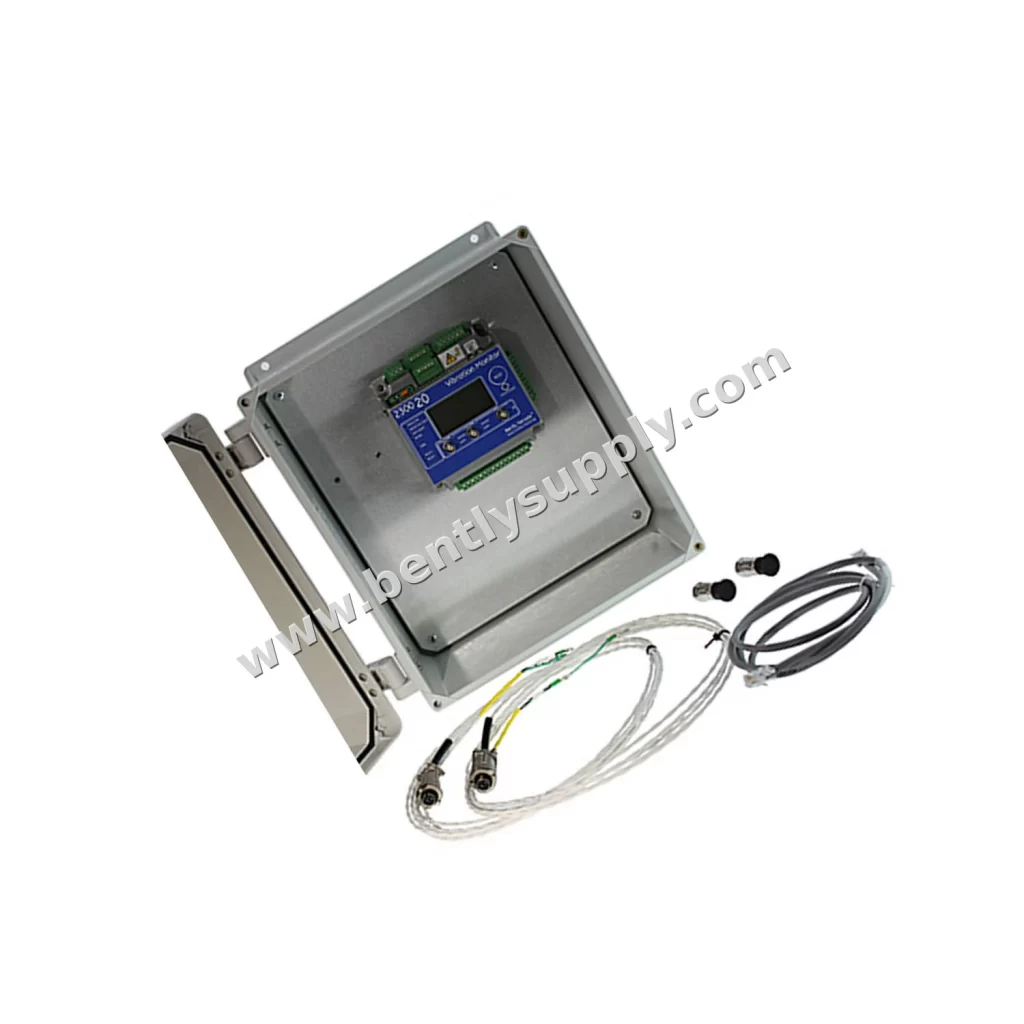

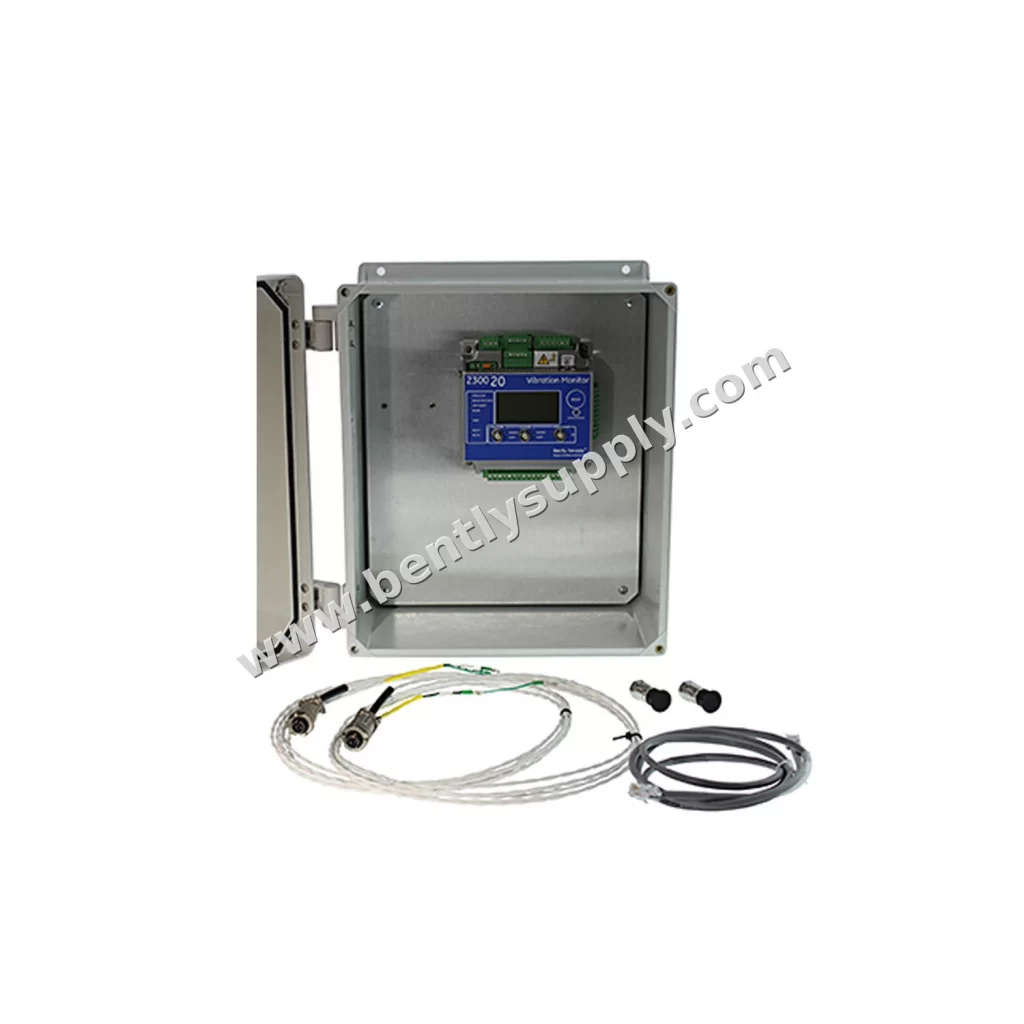

Bently Nevada 2300/25_KIT-001-00 Monitoring Module

Product Introduction

The Bently Nevada 2300/25_KIT-001-00 is a monitoring module, engineered for continuous protection of rotating machinery. TenBN supplies this genuine Bently Nevada component with full documentation and ready stock for plants running condition monitoring programs on critical equipment.

Technical Parameters

• Model: 2300/25_KIT-001-00
• Product Type: Monitoring Module
• Configuration: 001
• Accuracy: ±1% of full scale range
• High AC: 8 Vpp Low AC: 1.6 Vpp
• DC GAP: 0 to -20 Vdc (max
• Accuracy High/Low AC: ±1% of Full-Scale
• At 100 Hz DC GAP: ±0.5 V
• Cable length: 100 meters (328 ft.)
• Powered: 38 years @ 50°C
• Un-powered: 12 years @

Parameter Analysis

The ordering string of the 2300/25_KIT-001-00 encodes its physical and electrical configuration, so every digit should be checked against the machine drawing before substitution. The unit is rated for operation from -30°C to +65°C (-22°F to +149°F).

Monitoring modules form the decision layer of the protection system, turning transducer signals into alarms and trips; keeping channels on consistent part numbers preserves documented measurement accuracy.

Application Scenarios

Within the protection rack, this module provides the channel-level processing that turns raw machinery measurements into actionable operator information.

Installation Guide

Insert the module into its designated rack slot, confirm the option string and position match the system configuration, wire the field terminals per the machine drawing, and verify channel alarms and trips before returning the protection system to service.

Compatibility

This component belongs to the Bently Nevada condition monitoring portfolio and is engineered to work with the associated probes, extension cables, Proximitors, and monitoring hardware of the same system. Bently Nevada components sharing the same part number are fully interchangeable, so a stocked spare can be fitted without re-engineering the measurement loop. TenBN can supply the complete chain under consistent part numbers.

Maintenance Advice

Review channel status, alarm settings, and module indicators during routine maintenance windows, and confirm field wiring integrity at the terminals. Keep the unit within its -30°C to +65°C (-22°F to +149°F) operating envelope in service and storage.

Procurement Advice

Confirm the complete part number against your machine’s bill of materials before ordering, since each option digit changes the mechanical or electrical fit. TenBN stocks genuine Bently Nevada components and provides the official service documentation for this model. For inventory, pricing, and lead time on the 2300/25_KIT-001-00, contact [email protected].

Frequently Asked Questions

What is the operating temperature range?

The unit is rated from -30°C to +65°C (-22°F to +149°F), covering the temperature extremes typical of turbomachinery installations.

Can this spare be interchanged with existing components?

Bently Nevada components sharing the same part number are fully interchangeable, so this spare can replace an existing unit without recalibrating the loop when the complete part number matches.

How do I confirm the right part number?

Check every option digit against the machine bill of materials, then contact [email protected] with the full string; the TenBN team will confirm fit, stock, and documentation.
