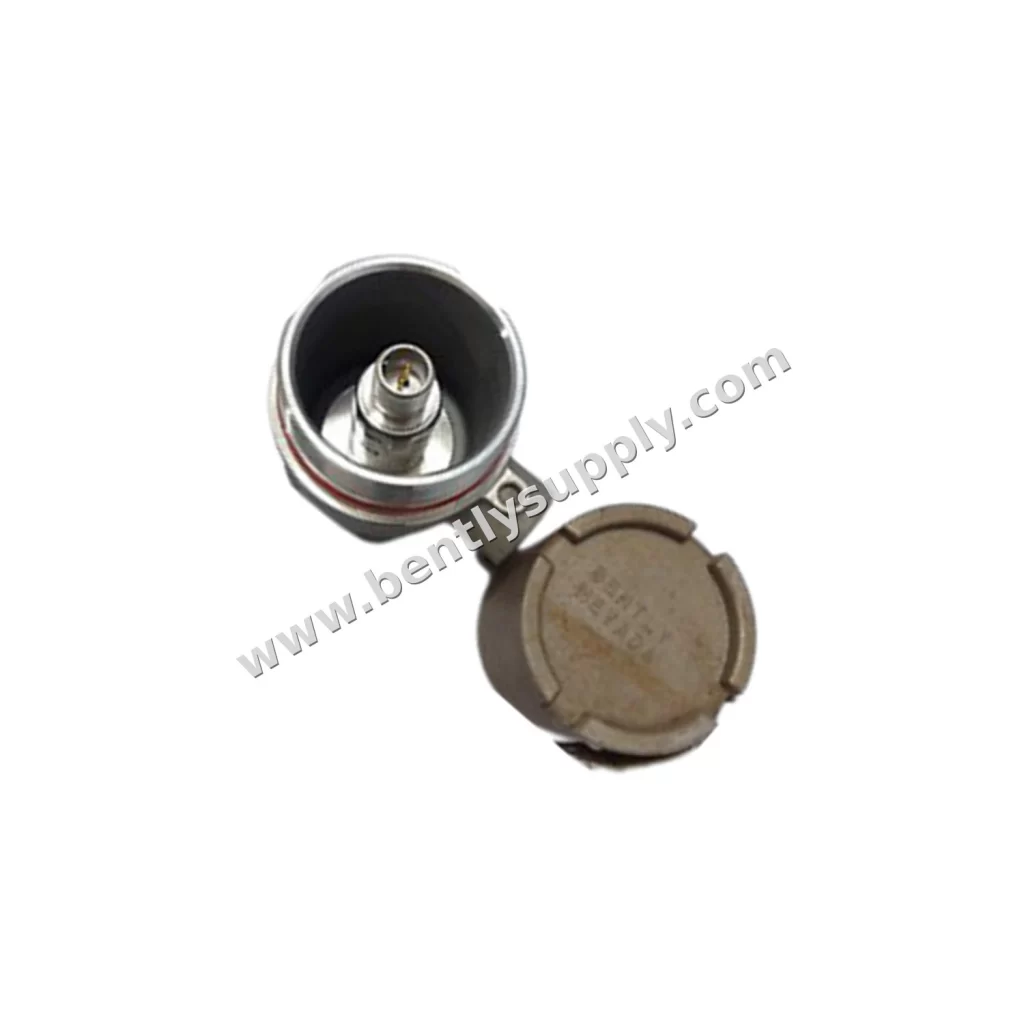

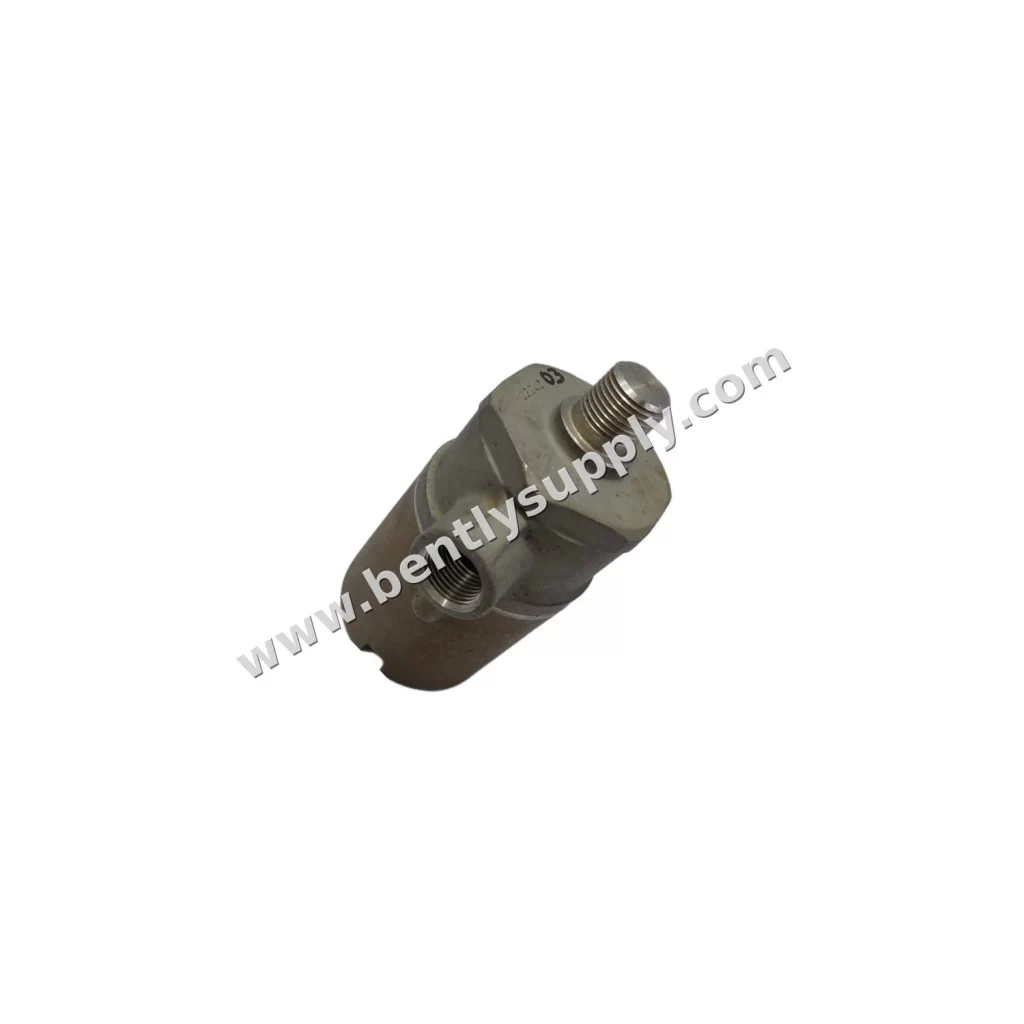

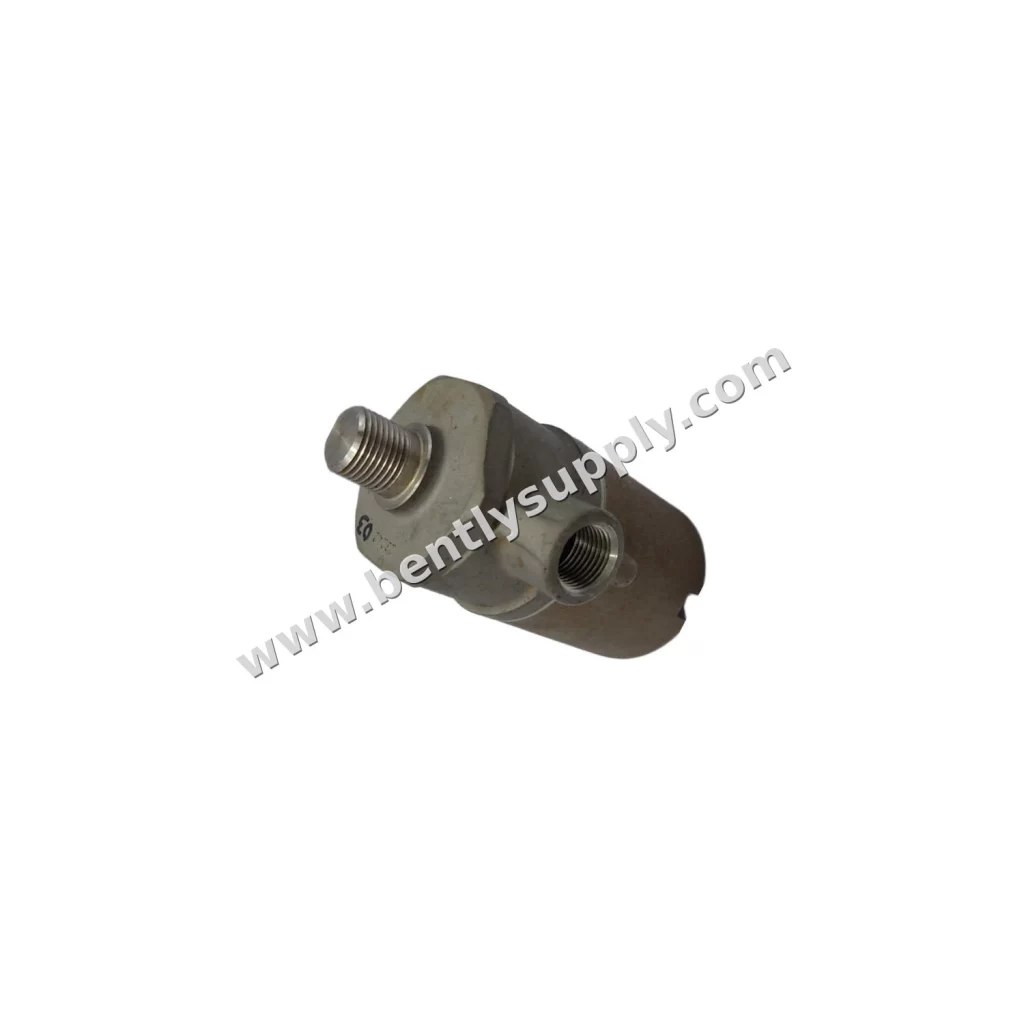

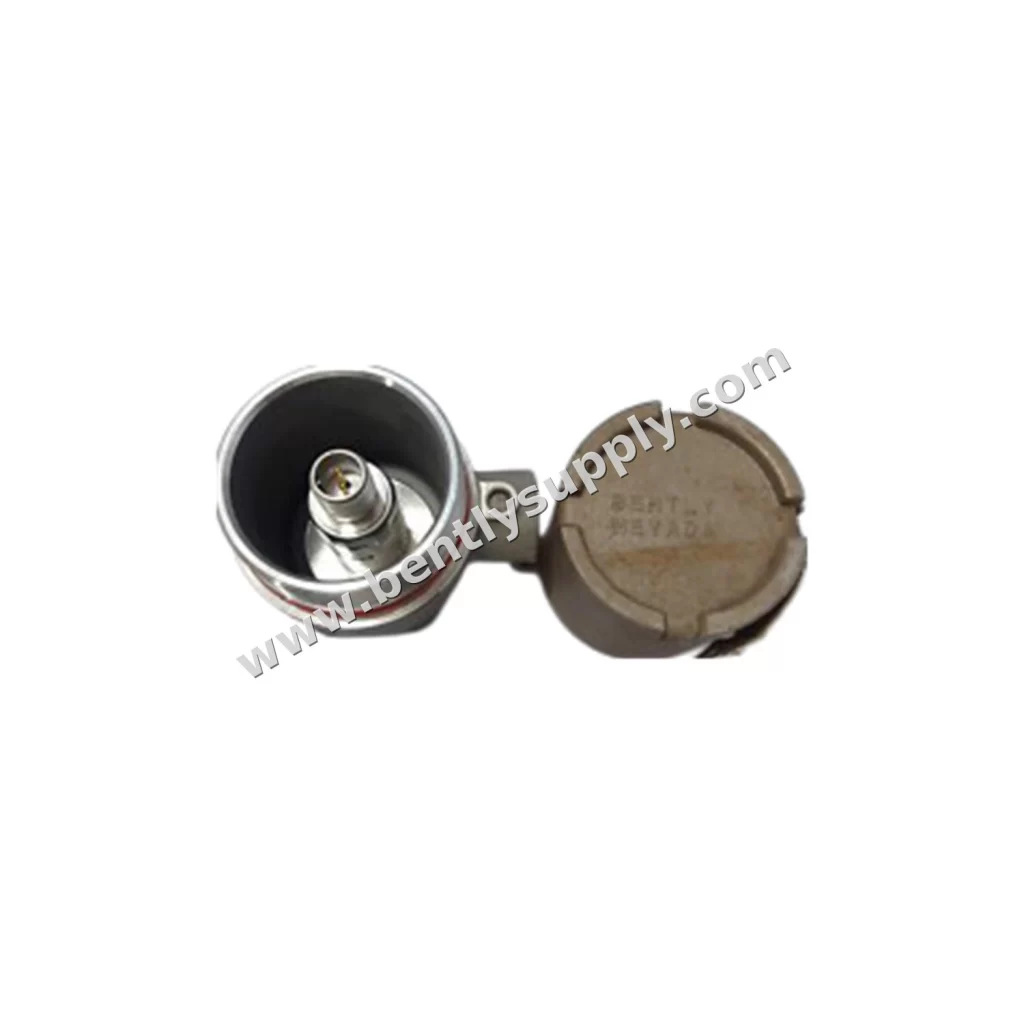

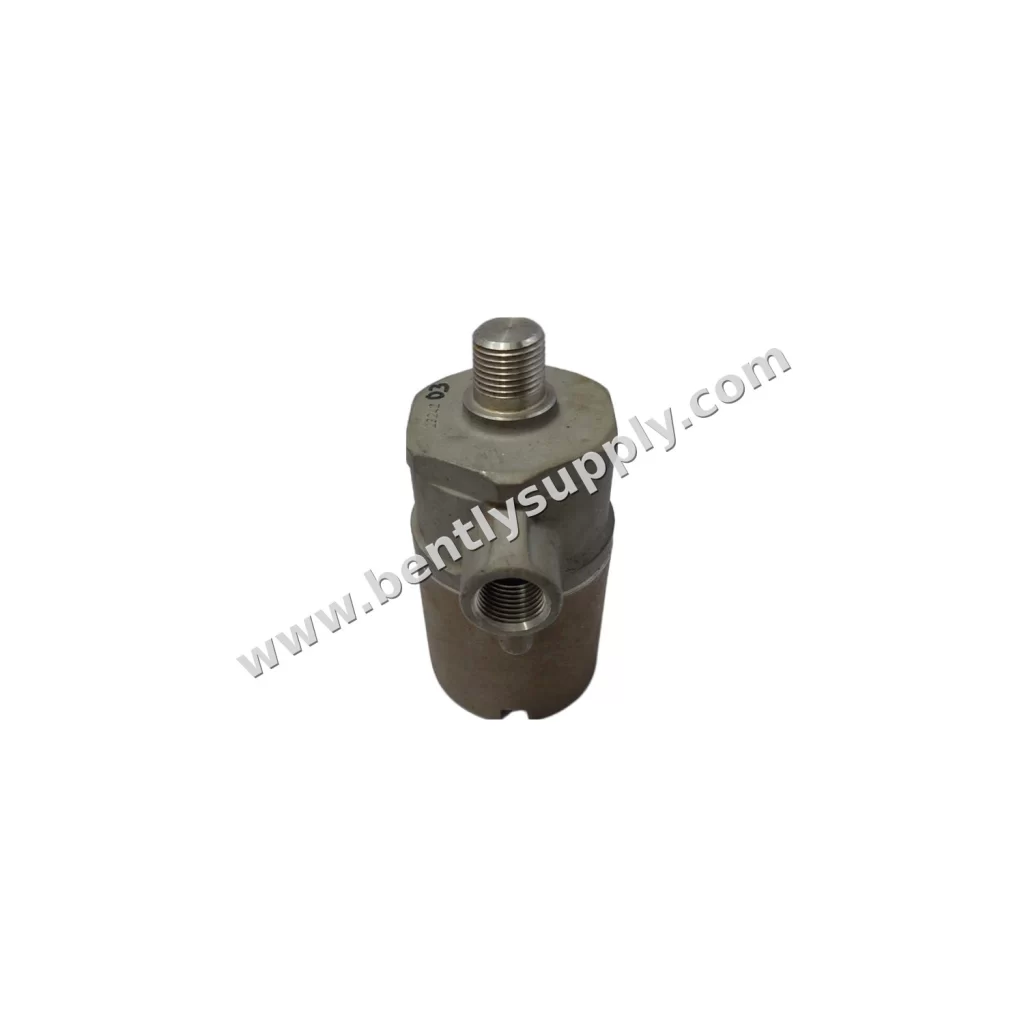

Bently Nevada 107770-04-02 Proximity Probe

Product Introduction

The Bently Nevada 107770-04-02 (A or B (in compliance with EN) is a probe housing assembly that supports reliable condition monitoring on rotating machinery. As a genuine Bently Nevada part, it integrates with existing protection loops and is available from TenBN with the official service documentation.

Technical Parameters

• Model: 107770-04-02
• Product Type: A or B (in compliance with EN
• Mounting thread Option: 04 =1/2-14 BSP
• Cable exit fitting Option: 02= 1/2-14 NPT explosion-proof

Parameter Analysis

Configuration of the 107770-04-02 is carried entirely in its part number, which makes the full string the reference point for spare parts planning and system design. The mounting thread Option specifies 04 =1/2-14 BSP. The cable exit fitting Option specifies 02= 1/2-14 NPT explosion-proof.

The housing assembly seals the probe penetration against wash-down and dust while allowing standard probe maintenance, combining mechanical protection with the electrical performance of the enclosed probe.

Application Scenarios

This housing assembly protects the proximity probe where it passes through the machine casing on turbines, compressors, and pumps. It is well suited to wash-down areas, outdoor installations, and hazardous locations where the probe needs mechanical and environmental protection.

Installation Guide

Confirm every option digit against the machine drawing, mount the housing through its threaded connection, tighten the retaining nut to the documented torque, and keep the sleeve O-rings seated to preserve the environmental seal. Set the probe gap after assembly and verify before start-up.

Compatibility

This component belongs to the Bently Nevada condition monitoring portfolio and is engineered to work with the associated probes, extension cables, Proximitors, and monitoring hardware of the same system. Bently Nevada components sharing the same part number are fully interchangeable, so a stocked spare can be fitted without re-engineering the measurement loop. TenBN can supply the complete chain under consistent part numbers.

Maintenance Advice

Inspect the housing cover, screws, and O-rings at each maintenance opportunity, and confirm the retaining nut torque has not relaxed in service.

Procurement Advice

This unit is supplied new & original in factory packing with 12 months factory warranty. Confirm the complete part number against your machine’s bill of materials before ordering, since each option digit changes the mechanical or electrical fit. TenBN stocks genuine Bently Nevada components and provides the official service documentation for this model. For inventory, pricing, and lead time on the 107770-04-02, contact [email protected].

Frequently Asked Questions

Can this spare be interchanged with existing components?

Bently Nevada components sharing the same part number are fully interchangeable, so this spare can replace an existing unit without recalibrating the loop when the complete part number matches.

How do I confirm the right part number?

Check every option digit against the machine bill of materials, then contact [email protected] with the full string; the TenBN team will confirm fit, stock, and documentation.
